AIE L-Bar Shrink Wrap System with Film Rack
- Ships from the manufacturer in the USA
- Manufacturer warranty: 180 days
- Freight quoted before you pay
- Expert advice: +1 469-809-4363
- Non-returnable unless AIE approves the return
Planning around a deadline? Contact us to confirm lead time and freight before you order.
We source directly from AIE
Need help choosing? Talk to an expert
+1 469-809-4363Description

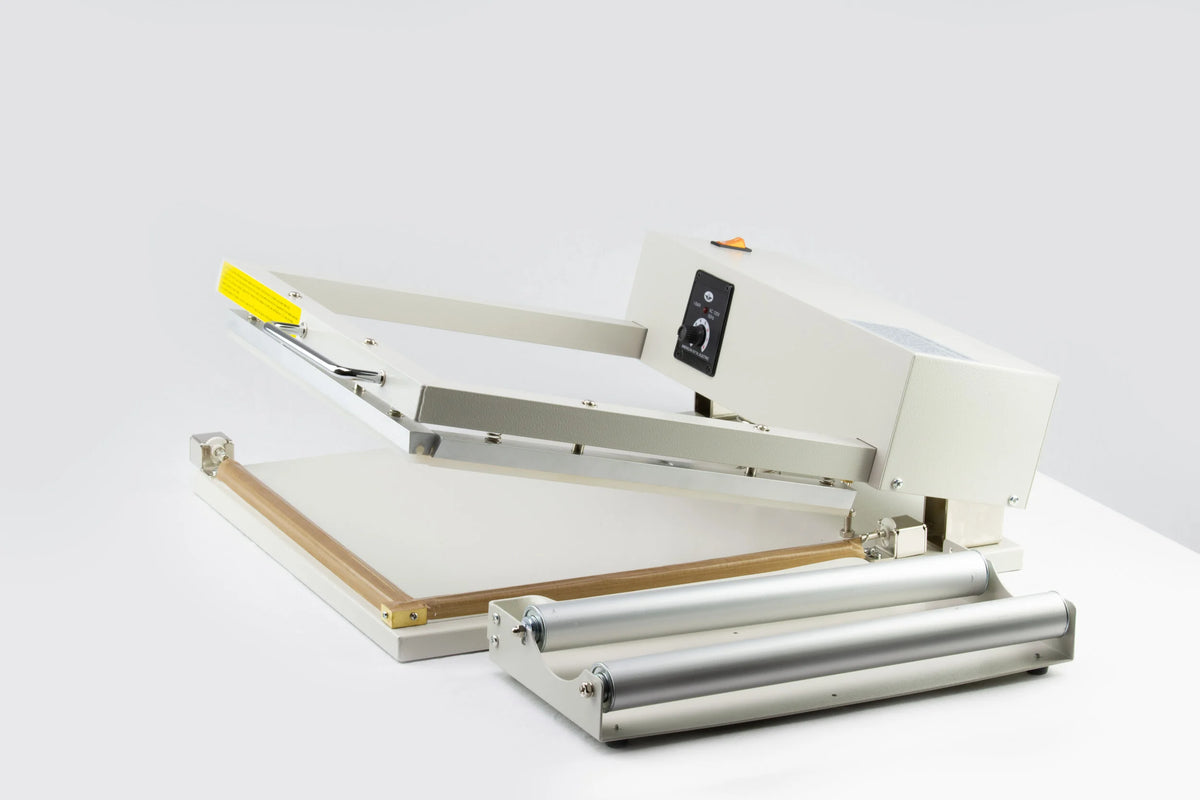

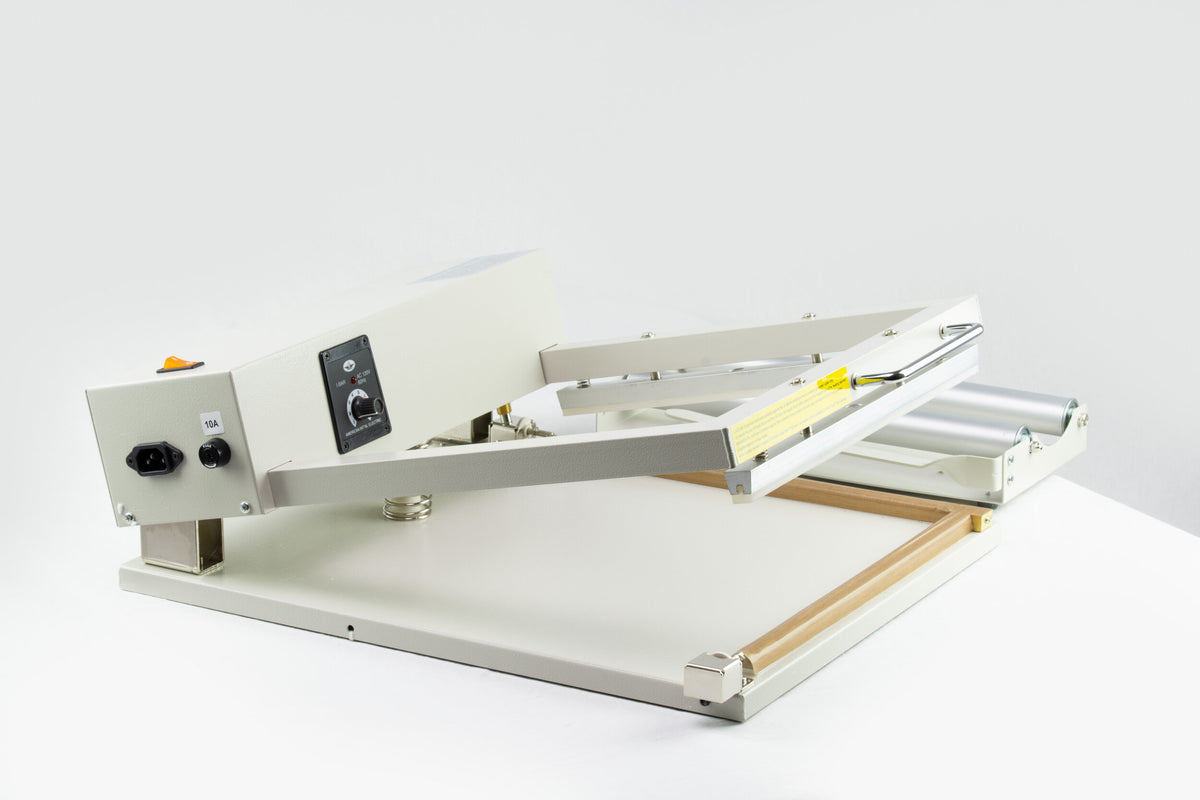

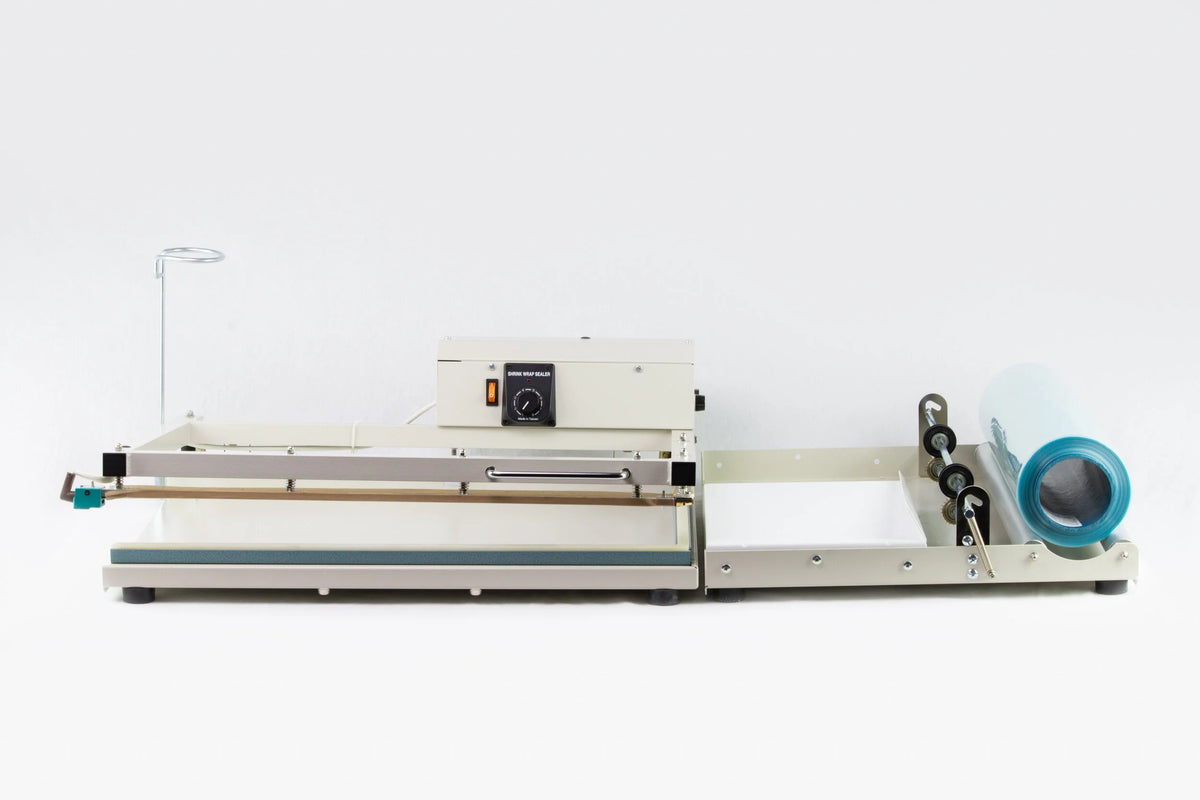

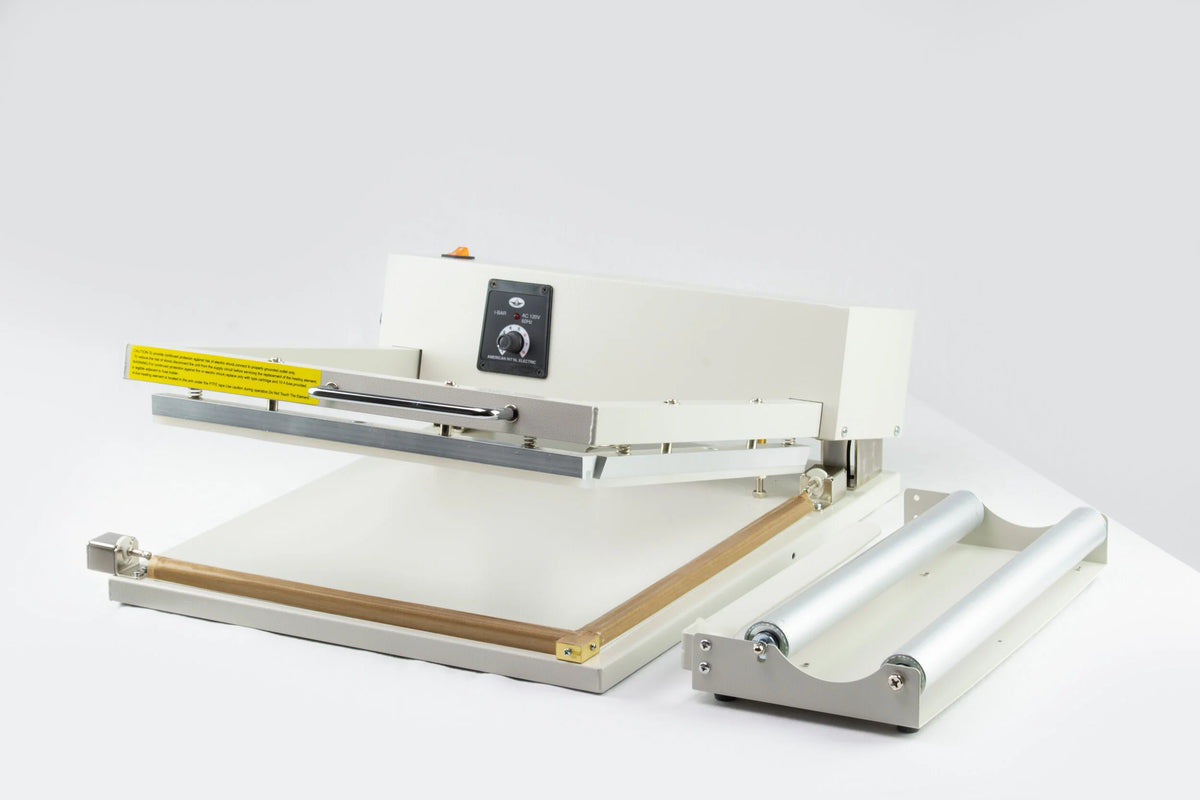

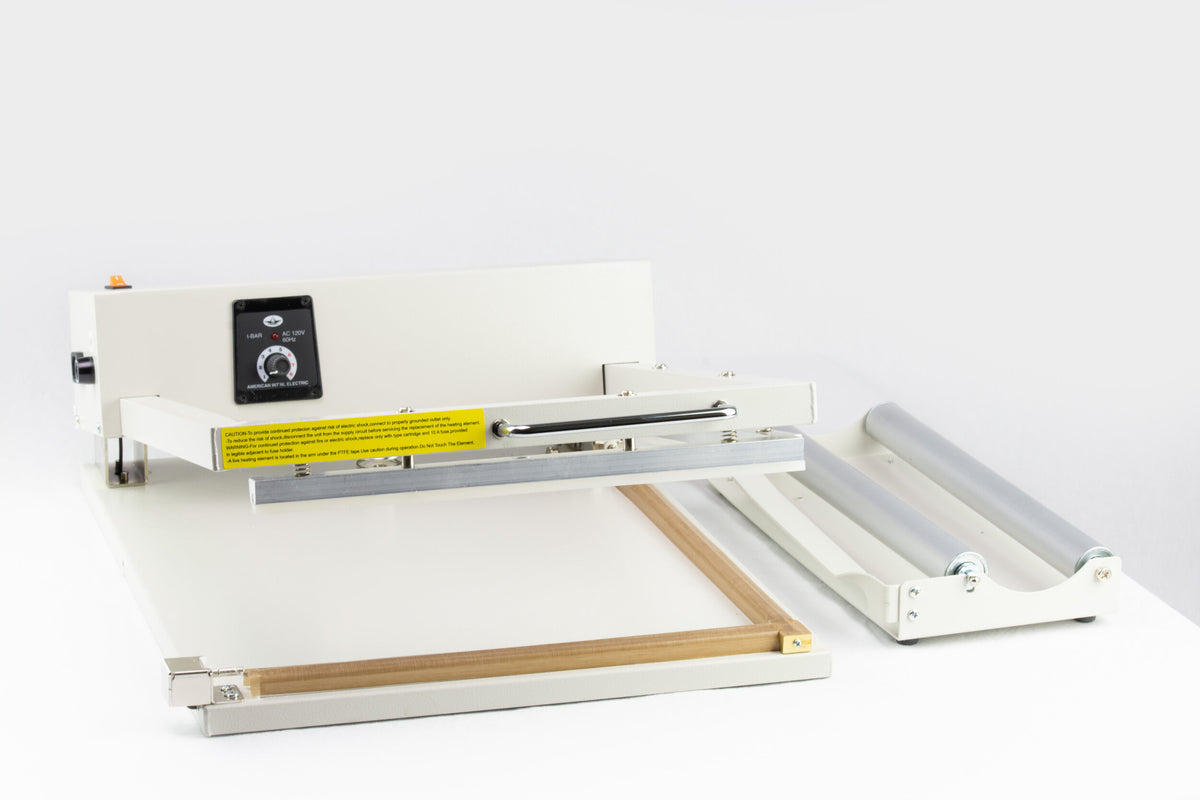

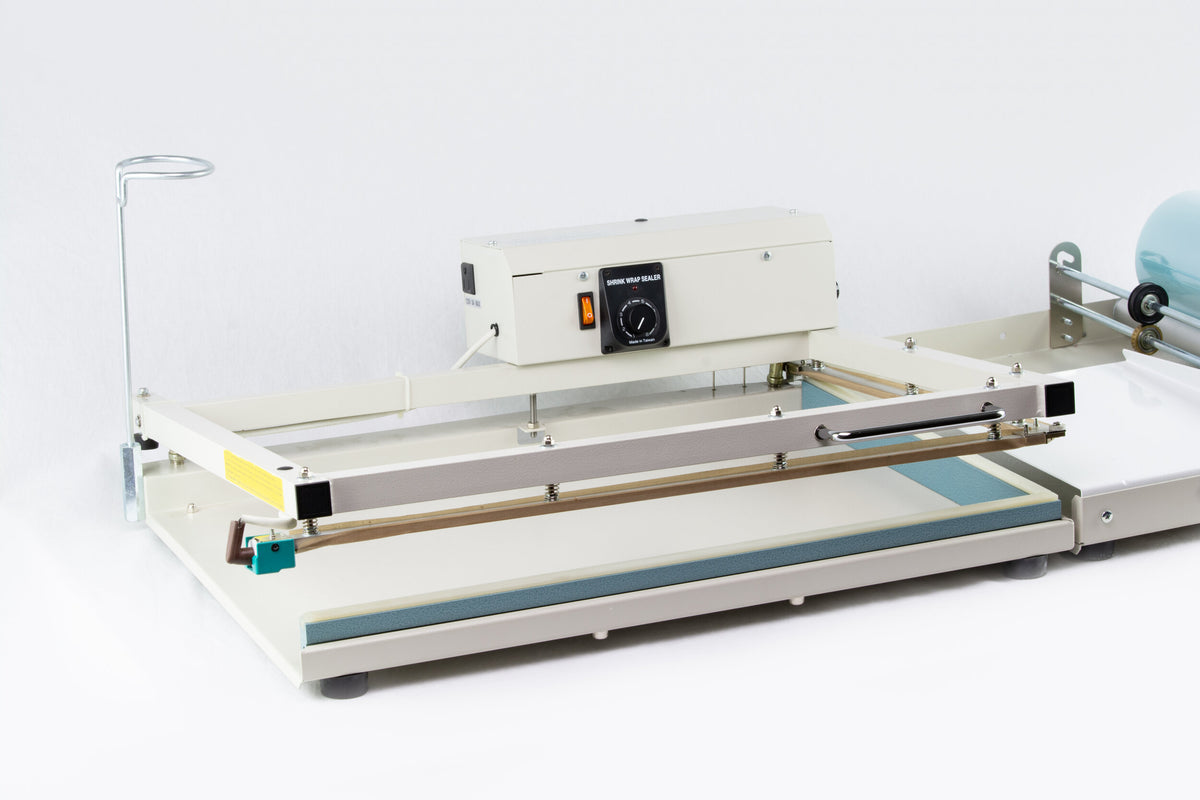

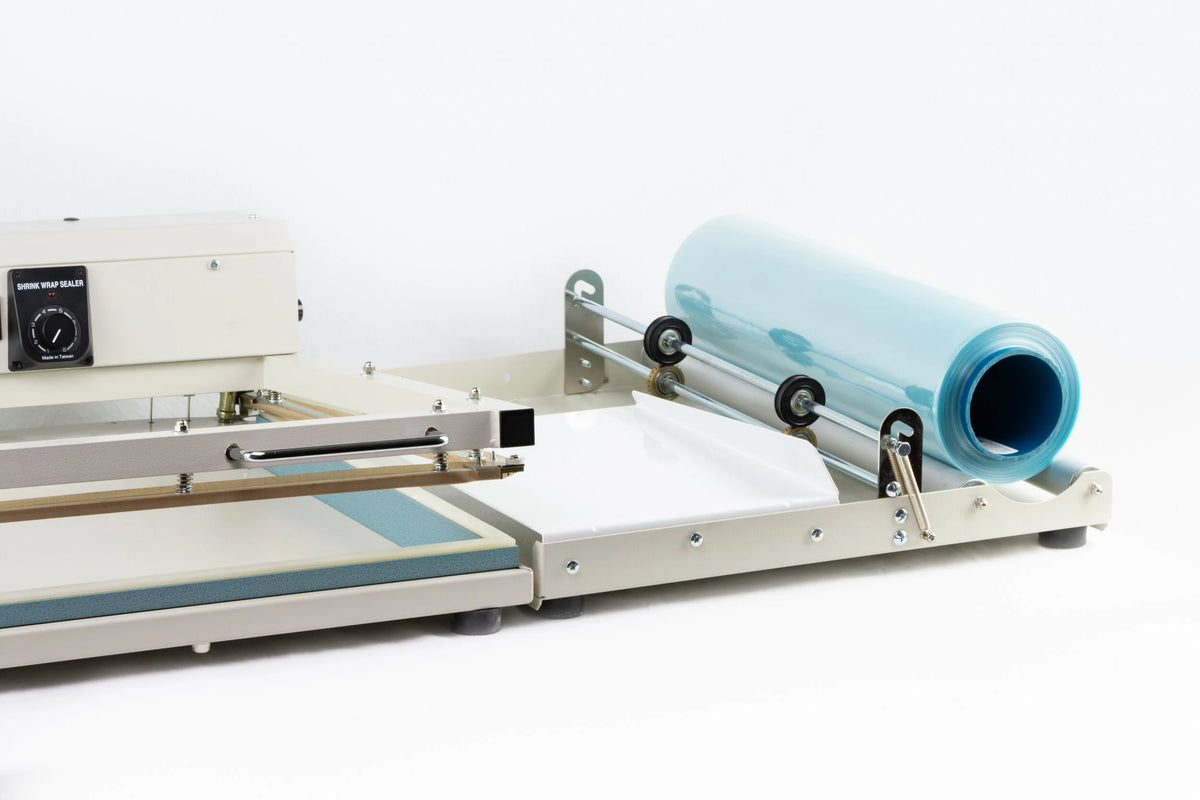

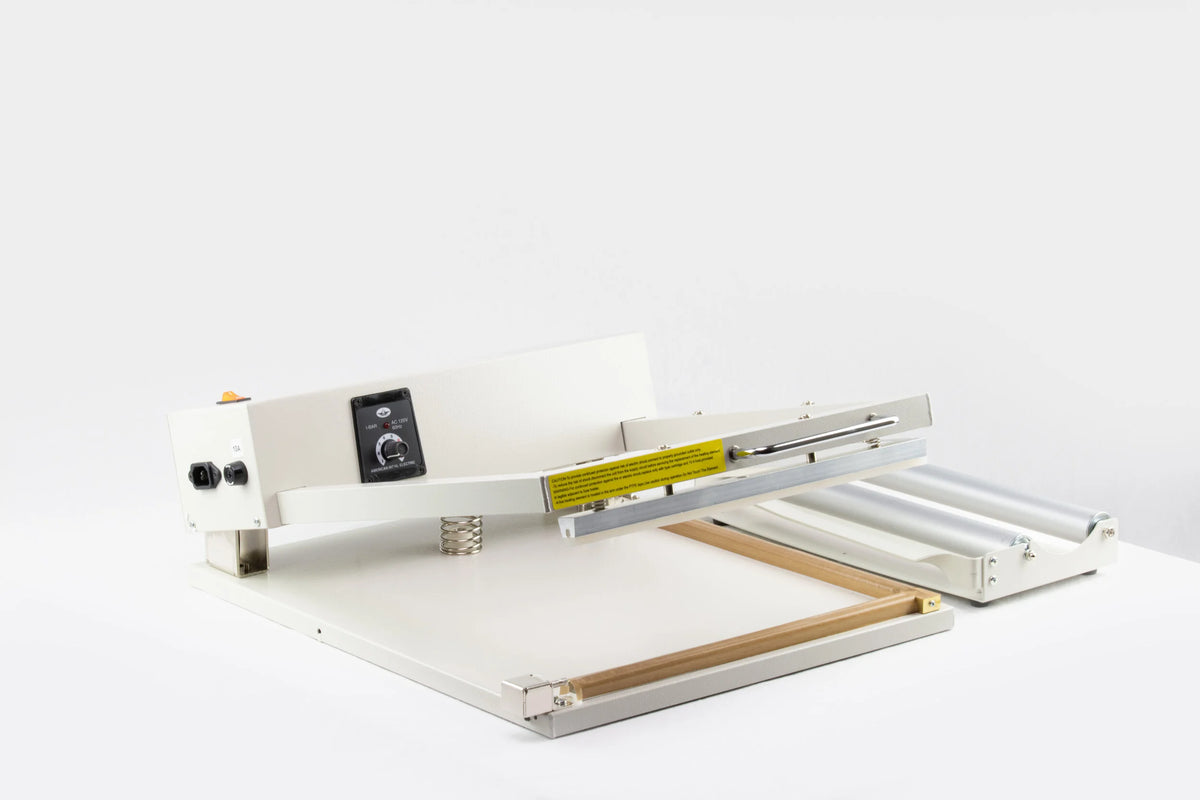

The AIE L-Bar Series is an all-in-one shrink wrap system with a dual impulse sealing bar. The L-shaped bar seals and trims two sides of a centerfold film pouch in one stroke, and the film rack holds the roll in place for the next pack.
It is simple to use with a three-step operation and needs no warm-up. The bar seals PP, PVC and PE film up to 0.025 mm thick with 500 W power, and the average seal time is 1–4 seconds. Four sizes from 13″ × 13″ to 24″ × 32″. Film and heat gun are sold separately.
Key Features
- Dual impulse L-bar seals and trims two sides of the pack in one stroke
- No warm-up: impulse heat only during the seal
- Seals PP, PVC and PE shrink film up to 0.025 mm thick
- Average seal time 1–4 seconds; 500 W power
- Four seal areas: 13″ × 13″, 18″ × 18″, 16″ × 24″ and 24″ × 32″
- Film rack dispenser, timer, outlet plug and parts kit included; film and heat gun sold separately
Ideal For
- Retail packers shrink wrapping boxes, gift sets and multipacks
- Small manufacturers protecting products from dust, moisture and pilferage
- Bakeries and food producers wrapping trays and boxed goods
- Print shops and publishers wrapping books and stacks of paper
- Start-ups that want L-bar shrink packaging without a tunnel
Specifications
At a glance
| Included | Impulse dual bar sealer, timer, film rack dispenser, outlet plug and parts kit |
|---|---|
| Not included | Shrink film and heat gun (sold separately, per AIE) |
| Warranty | 180-day manufacturer warranty from the date you receive the equipment (AIE) |
| Returns | Non-returnable unless AIE approves the return in writing. Returns only with our written Return Authorization. Report damage, defects, missing or wrong items in writing with photos within 5 business days of delivery. See our Return & Refund Policy. |
| Shipping | Ships from AIE in City of Industry, California, by UPS or LTL freight. Freight is quoted before you pay. |
| Lead time | Lead time on request. |
Technical specifications
| Model | Sealing size |
|---|---|
| AIE-1313L | 13" × 13" |
| AIE-1818L | 18" × 18" |
| AIE-1624L | 16" × 24" |
| AIE-2432L | 24" × 32" |
| Seal | Dual impulse seal and trim (AIE: round wire; 2 mm seal for the 1624L page) |
|---|---|
| Film | PP, PVC, PE up to 0.025 mm |
| Power | 500 W |
| Seal time | 1–4 s |
Data per AIE (theaiecompany.com and AIE instruction manuals, October 2026). Metric values are AIE's; inch/lb values are converted and rounded. Custom lengths and seal widths are available from AIE on request.
