How to Choose a Maripak Machine

Maripak's range covers every step from a first shrink sealer to an automatic line. The easiest way to find the right machine is to match it to your volume and product size, then add the tunnel and conveyors the line needs.

Starting out: Compack hood sealers

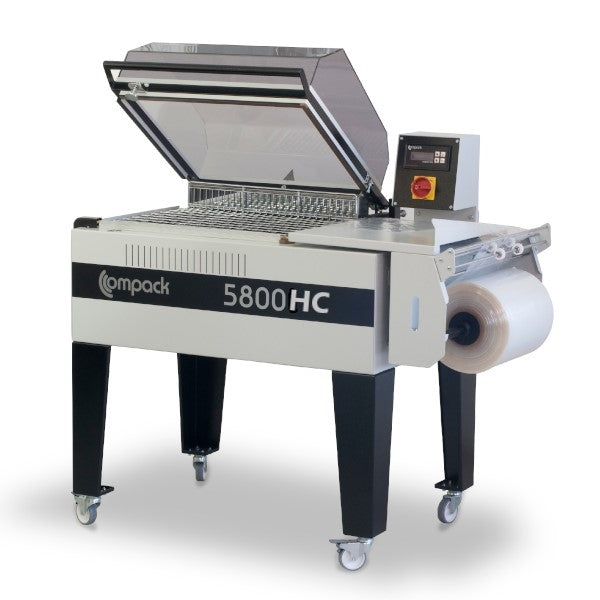

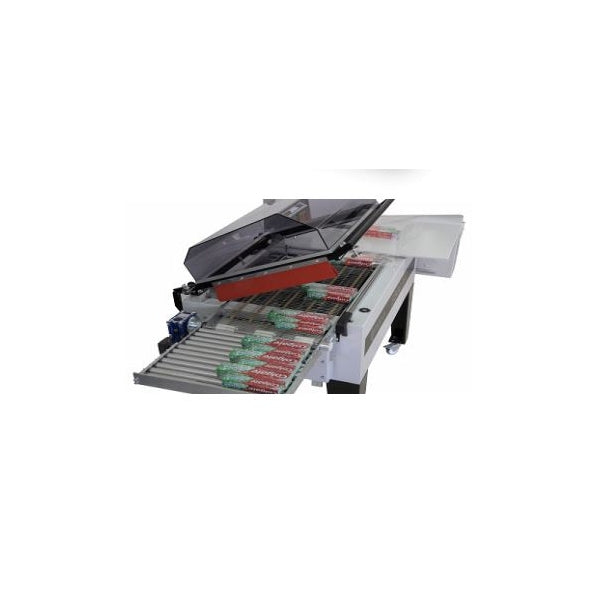

The Compack 5800i seals and shrinks in one chamber, at about 5–10 packs per minute per Maripak, with no tunnel and no compressed air. The 5800HC takes products up to 13″ high; the 5800MC adds an automatic discharge conveyor.

Semi-automatic: LMC and TMC Pro

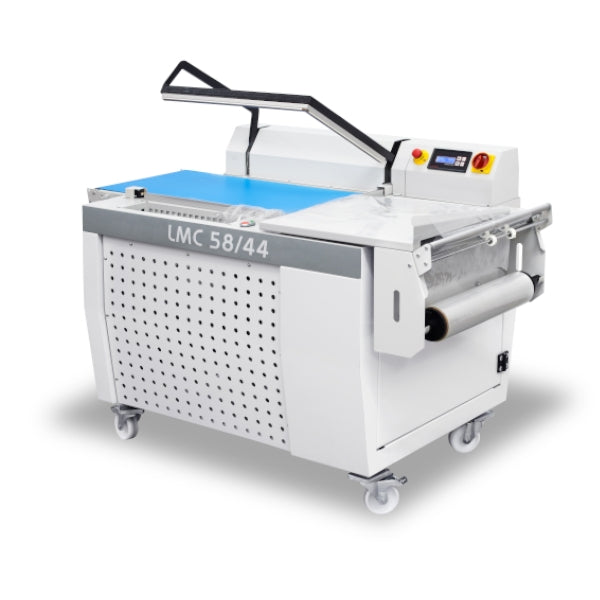

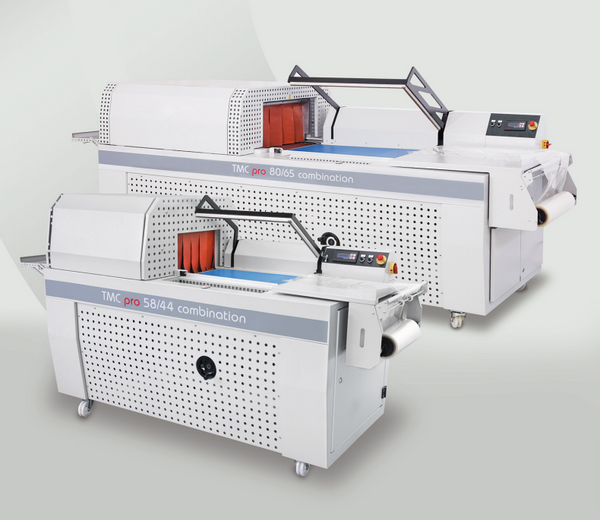

The LMC 5844-M, 8065-M and 9565-M close the sealing bar with a motor, at about 10–15 packs per minute, with seal areas from 23″ × 17″ to 35.5″ × 25.5″. The TMC Pro 5844-M and 8065-M add a built-in tunnel. The LMC-P 14065P seals long products up to 55″.

Automatic L-sealers: RLS e-Pro and CLS Compact

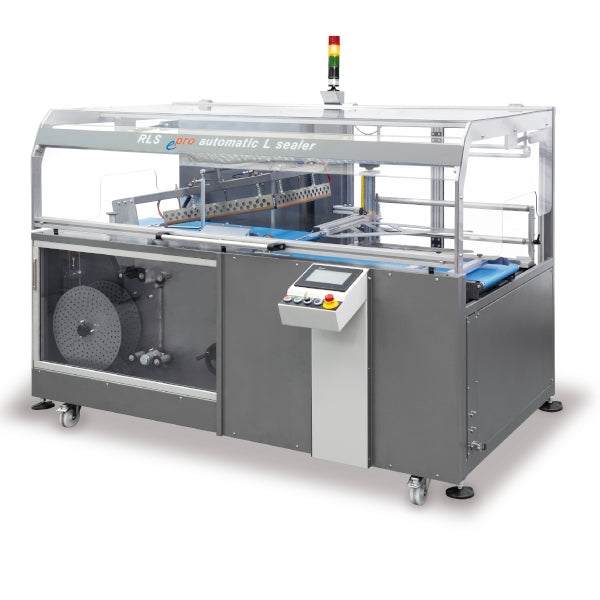

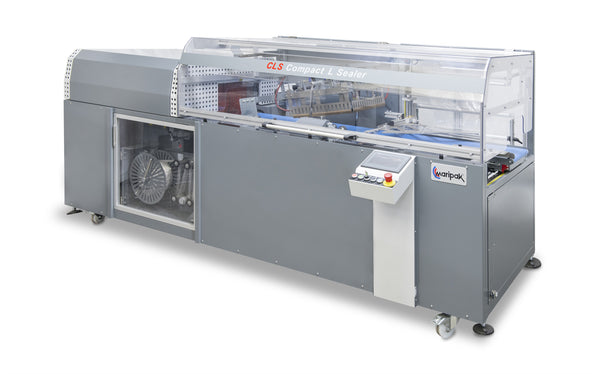

The RLS e-Pro 5844 and 8065 are servo-driven automatic L-sealers with product length detection and conveyor speeds up to about 98 ft/min. The CLS Compact combines an automatic L-sealer with a tunnel.

Side sealers: IMPACK, PRO-MOTION, HYBRID, WRAPTURE

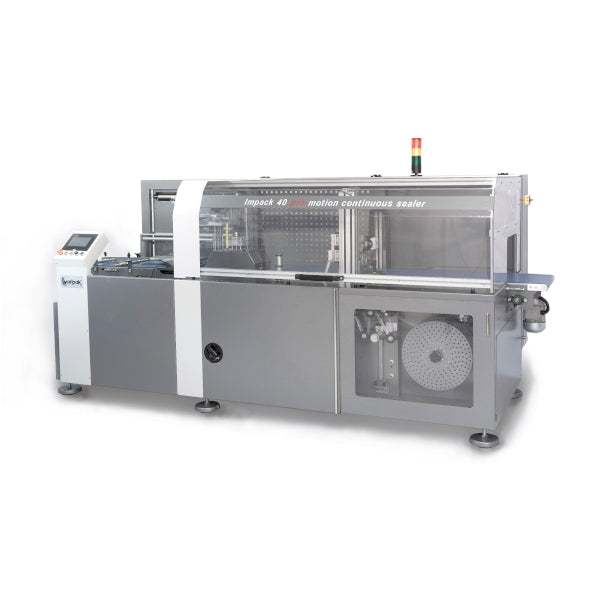

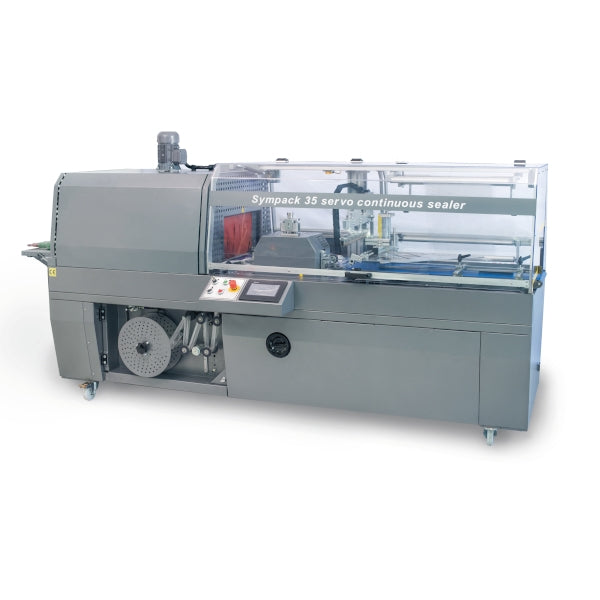

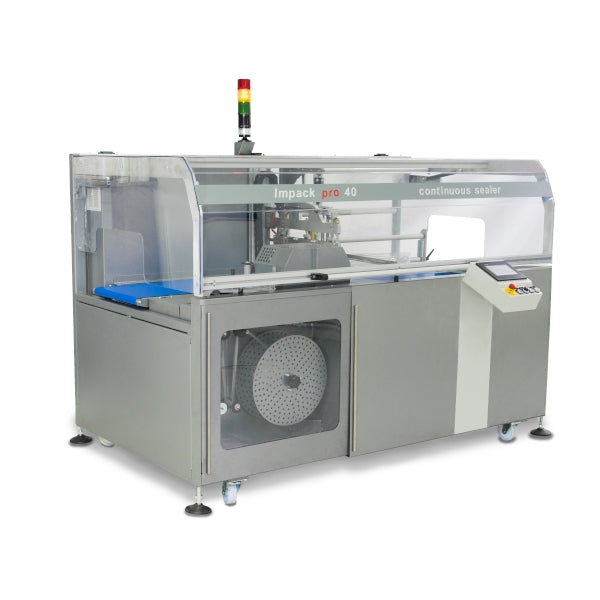

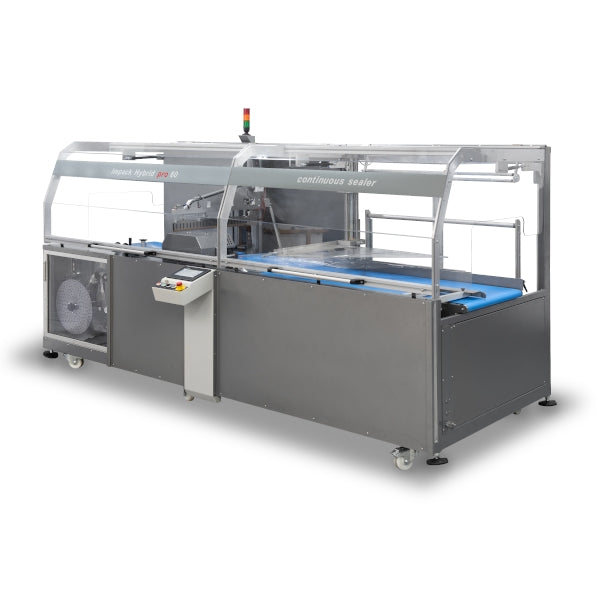

Side sealers seal along the product, so long products and changing lengths run automatically. The IMPACK PRO series reaches up to 60 cycles per minute, the PRO-MOTION series up to 110 per Maripak. The HYBRID 60 suits tall products, the SYMPACK 35 combines sealer and tunnel, and the WRAPTURE seals without a trim.

Shrink tunnels: Diamond

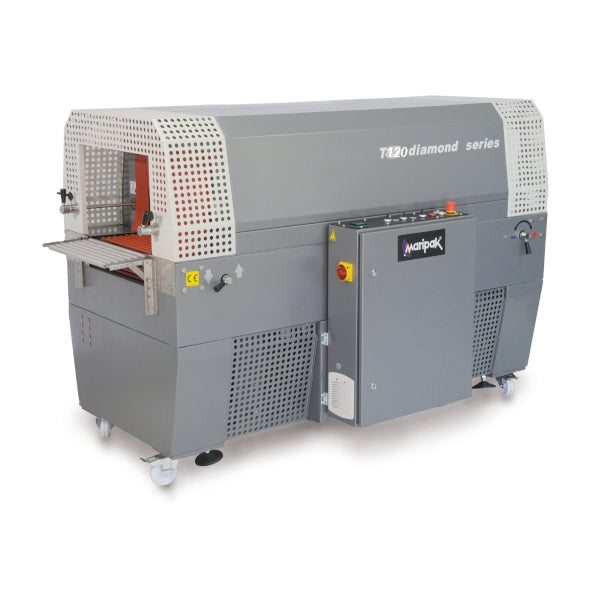

Diamond tunnels come in single-chamber, extended-length and double-chamber versions with belts from 18″ to 59″, matched to the sealer in front. Example: the Diamond T-45.

PE bundlers: Multimac

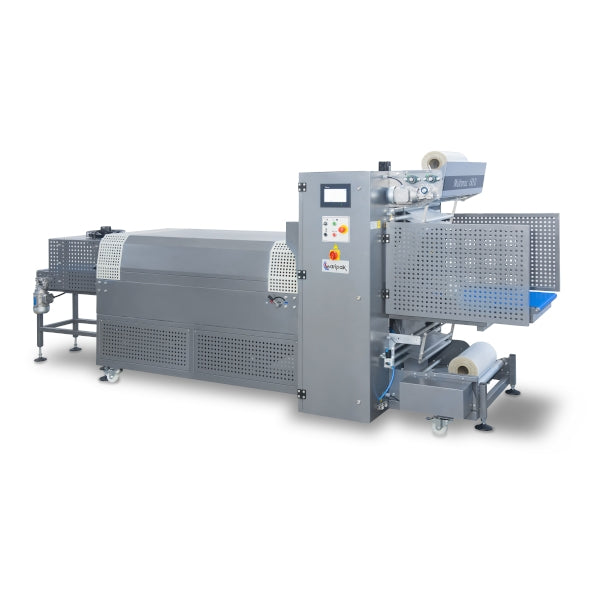

The Multimac D 60, D 80 and D 100 bundle bottles, cans and cartons in PE film with a built-in tunnel.

Conveyors and parts

SMART Sync conveyors link Maripak machines and run in sync with them. The SPKTMCv1 kit holds recommended spare parts for the TMC Pro.

Power and compressed air

Compack, LMC and TMC Pro models run without compressed air, most on 200–240 V single-phase power. Larger tunnels and automatic lines need 3-phase power; some need compressed air. Each product page lists the requirements.

Film

Most Maripak L-bar and side sealers run polyolefin (POF) and PVC shrink film in the thickness ranges listed on each product page; automatic machines also handle PE, OPP, CPP and PP with the right knife. Multimac bundlers use PE film of 1–3 mil.

Options and configuration

Many machines can be configured with options such as taller chambers, stainless steel versions, foot pedals, photo-eyes or printed-film registration. Options are built in or supplied by Maripak and quoted together with the machine; the final configuration is confirmed in a written quote.

Building a line step by step

Many customers start with one Maripak machine and add to it later. A typical path is a Compack hood sealer first, then an LMC L-bar with a Diamond tunnel, and later an automatic RLS e-Pro or IMPACK side sealer with SMART Sync conveyors. Because Maripak sealers, tunnels and conveyors are made to work together, each step can reuse what is already there. Tell us your plans when you request a quote, so the first machine fits the line you want to build.

Planning checklist

Note your pack sizes, packs per minute, film type, available power and compressed air, and the floor space. Add photos of your products if you can.

Installation and training

Maripak machines ship by freight from Maripak USA in Allentown, Pennsylvania, usually crated. Installation, start-up and operator training by Maripak technicians can be quoted separately.
